Redis - Master Node Cluster 구성하기

이번 포스팅에서는 Cluster Master Node 구성 방법에 대해서 알아보도록 하겠습니다.

Redis 이전글

https://server-talk.tistory.com/471 - Redis - In-Memory - 알아보기

https://server-talk.tistory.com/472 - Redis - 서버 설치 및 기본설정 알아보기

https://server-talk.tistory.com/473 - Redis - Redis-cli 기본 사용법

https://server-talk.tistory.com/474 - Redis - Redis Desktop Manager Tool

https://server-talk.tistory.com/475 - phpredis 설치 알아보기

https://server-talk.tistory.com/502 - Cluster 알아보기

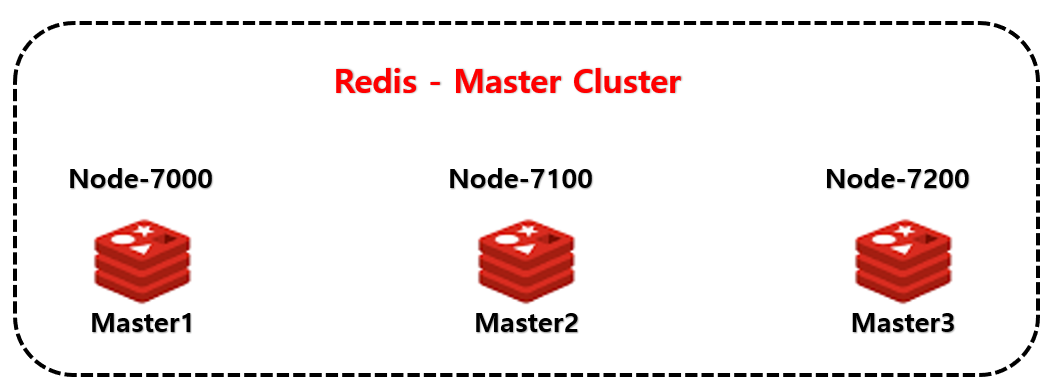

Redis - Cluster Master Node 구성정보

Redis - Cluster Master Node 설정하기

1. Redis - Clustering 폴더 생성

mkdir redis-cluster
cd redis-cluster

2. Redis - Cluster Master Node 설정파일 생성

# cp /etc/redis/redis.conf 7000-cluster.conf

# cp /etc/redis/redis.conf 7100-cluster.conf

# cp /etc/redis/redis.conf 7200-cluster.conf

3. Redis - Cluster Master Node1, Node2, Node3 설정파일 수정

3-1) Cluster - Master Node1

vi 7000-cluster.conf

port 7000
daemonize yes
cluster-enabled yes
cluster-config-file nodes-7000.conf
cluster-node-timeout 3000
appendonly yes
appendfilename appendonly_7000.aof
pidfile /var/run/redis_7000.pid
logfile logs/redis_7000.log

3-2) Cluster - Master Node2

vi 7100-cluster.conf

port 7100
daemonize yes
cluster-enabled yes
cluster-config-file nodes-7100.conf
cluster-node-timeout 3000
appendonly yes
appendfilename appendonly_7100.aof
pidfile /var/run/redis_7100.pid
logfile logs/redis_7100.log

3-3) Cluster - Master Node3

vi 7200-cluster.conf

port 7200
daemonize yes
cluster-enabled yes
cluster-config-file nodes-7200.conf
cluster-node-timeout 3000
appendonly yes
appendfilename appendonly_7200.aof
pidfile /var/run/redis_7200.pid
logfile logs/redis_7200.log

4. Redis - Master Node1, Node2, Node3 - Cluster 실행

# redis-server 7000-cluster.conf

# redis-server 7100-cluster.conf

# redis-server 7200-cluster.conf

5. Redis - Cluster 프로세스 확인

# ps -ef | grep redis
root      197823       1  0 18:20 ?        00:00:05 redis-server 0.0.0.0:7000 [cluster]
root      197830       1  0 18:21 ?        00:00:05 redis-server 0.0.0.0:7100 [cluster]
root      197837       1  0 18:21 ?        00:00:05 redis-server 0.0.0.0:7200 [cluster]
root      197902  197296  0 19:01 pts/1    00:00:00 grep --color=auto redis

6. Redis - Cluster Master Node 생성하기

사용법 : redis-cli --cluster create [Master Node1 IP]:[Master Node1 Port] [Master Node1 IP]:[Master Node2 Port] [Master Node1 IP]:[Master Node3 Port]

# redis-cli --cluster create 127.0.0.1:7000 127.0.0.1:7100 127.0.0.1:7200

Warning: Using a password with '-a' or '-u' option on the command line interface may not be safe.
>>> Performing hash slots allocation on 3 nodes...
Master[0] -> Slots 0 - 5460
Master[1] -> Slots 5461 - 10922
Master[2] -> Slots 10923 - 16383
M: 5c31b49ad1e4f561c0f371e1c59754da0d018e01 127.0.0.1:7000
   slots:[0-5460] (5461 slots) master
M: 83250ff969fd5a00a950d826257f03f438aec567 127.0.0.1:7100
   slots:[5461-10922] (5462 slots) master
M: 95078d7e470c125676dcdddc485bc5a6680286c2 127.0.0.1:7200
   slots:[10923-16383] (5461 slots) master
Can I set the above configuration? (type 'yes' to accept): yes
>>> Nodes configuration updated
>>> Assign a different config epoch to each node
>>> Sending CLUSTER MEET messages to join the cluster
Waiting for the cluster to join
..
>>> Performing Cluster Check (using node 127.0.0.1:7000)
M: 5c31b49ad1e4f561c0f371e1c59754da0d018e01 127.0.0.1:7000
   slots:[0-5460] (5461 slots) master
M: 83250ff969fd5a00a950d826257f03f438aec567 127.0.0.1:7100
   slots:[5461-10922] (5462 slots) master
M: 95078d7e470c125676dcdddc485bc5a6680286c2 127.0.0.1:7200
   slots:[10923-16383] (5461 slots) master
[OK] All nodes agree about slots configuration.
>>> Check for open slots...
>>> Check slots coverage...
[OK] All 16384 slots covered.

Cluster 생성시 위 내용이 출력이 됩니다.
